Pre-molded Tesla sunroof shade (vehicle-specific)

Vehicle-specific preformed sunroof film for Tesla Model 3 / Model Y — P5 cloud white, M7 deep gray, M9 ink black, and OMTD themed graphics. Preformed, edge-sealed, and shipped as individual vehicle kits.

P5 / M7 / M9 / OMTD · Preformed kits · Edge sealed · 3-year warranty

Get quote Automotive bulk quote

Pre-molded Tesla sunroof shade (vehicle-specific)

Break through the past and define new industry standards

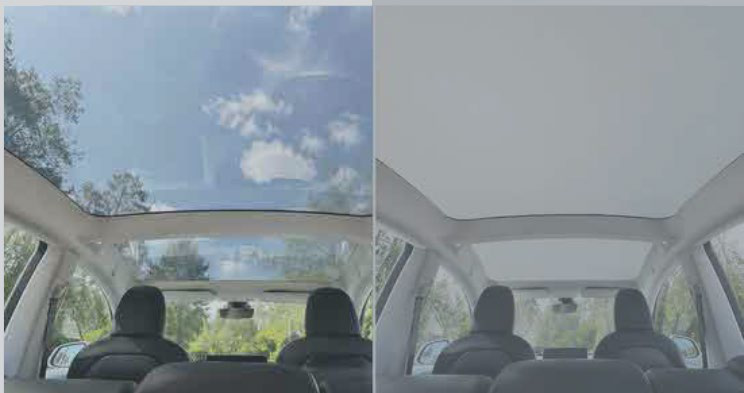

PDLC smart film consists of two layers of flexible transparent conductive films and a layer of polymer dispersed liquid crystal material. Automotive-grade smart film must pass strict automotive standards including wide temperature resistance and radiation resistance before being applied in vehicles. Four products covering visual effects, light privacy, and dark dimming — a clear product ladder for display projects, mainstream upgrades, and high-sunlight markets.

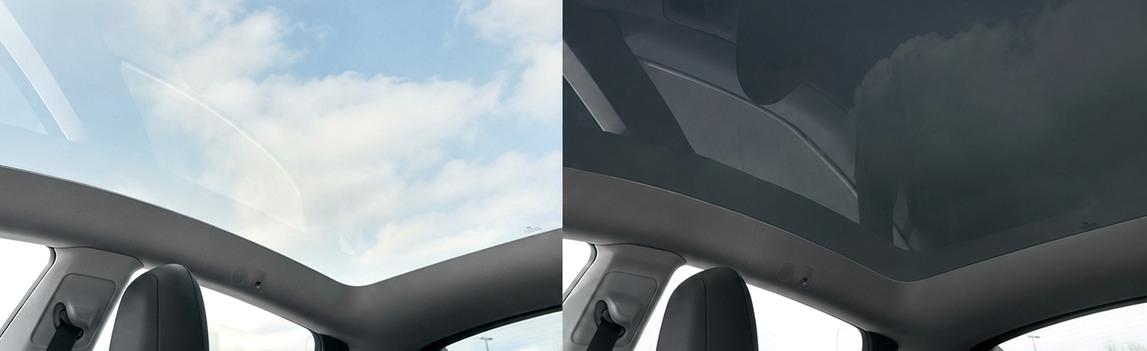

Low power consumption

Power consumption remains unchanged even at 90°C, delivering excellent energy efficiency.

ITO pre-etching process

With a partition line width of 20 μm, lines are nearly invisible when powered off.

Low-temperature response

Fast response even at −30°C — excellent low-temperature adaptability.

Strong OFF-state shading

Strong shading in the off state, ensuring stable and reliable privacy protection.

Product ladder

Four products covering visual effects, light privacy, and dark dimming — a clear ladder for display projects, mainstream upgrades, and high-sunlight markets.

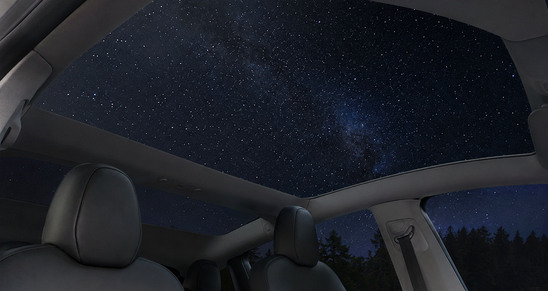

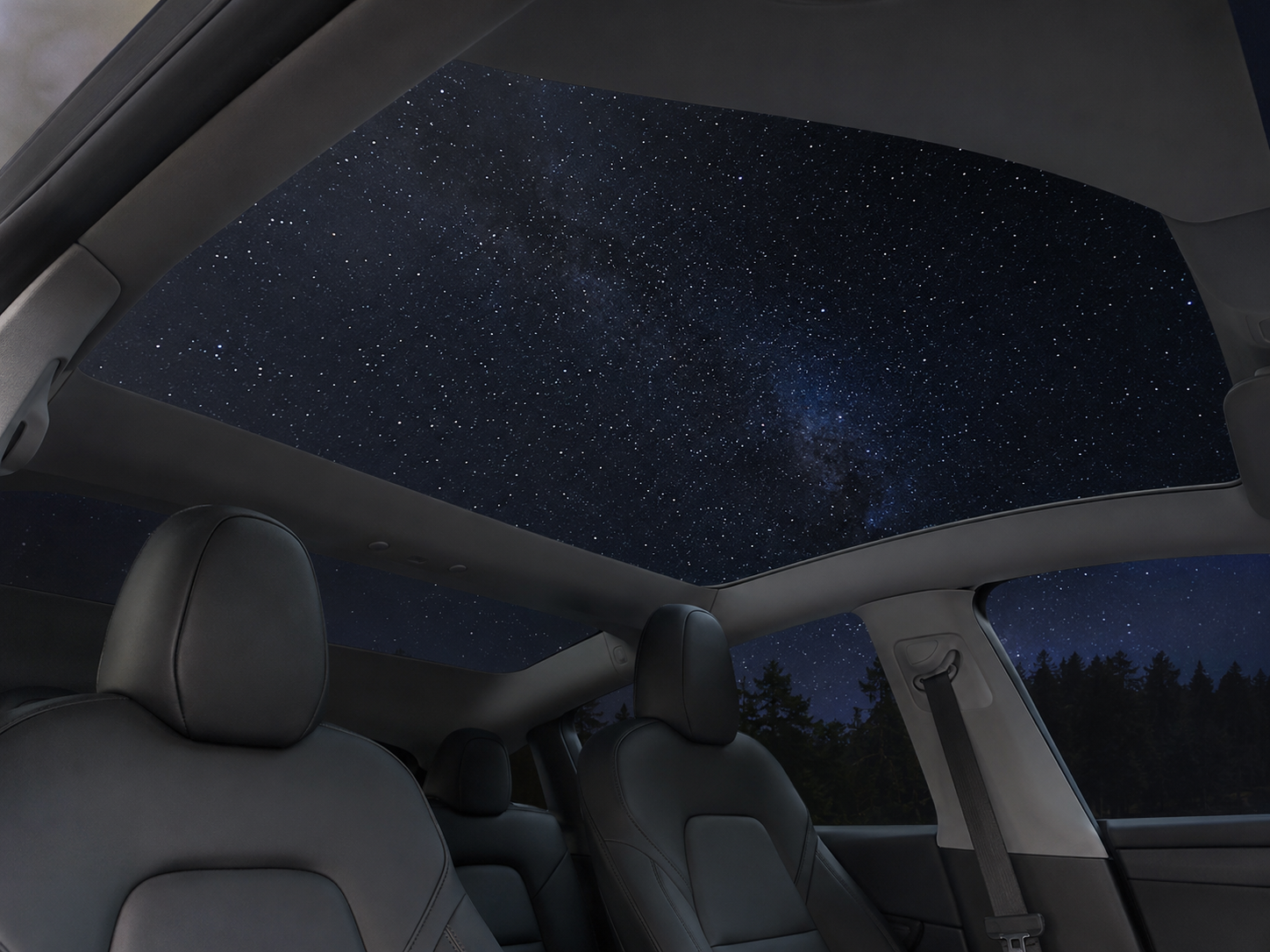

OMTD — Photoelectric Themed Graphics

Displays a main graphic on glass; supports standard and customized designs. OMTD can be applied to panoramic roofs or side windows, displaying predesigned main graphics, themed patterns, or personalized images on the glass.

PHOTOELECTRIC | THEMED GRAPHICS
Show cars, premium customization, traffic-generation projects
Starlight | Meteor effects | Geometric lines | Welcome themes | Brand graphics
VLT 60% · UV <1% · TSER 45%
Panoramic roof ≈ 1500 × 925 mm · Dual-sunroof set available
HIGH VISUAL RECOGNITION — differentiated from heat-control film and ambient lighting
STRONG SOCIAL-MEDIA APPEAL — short videos, posts, display vehicles
CUSTOMIZATION SUPPORT — standard and project-specific patterns

Not simply another light strip — the entire glass surface becomes part of the visual design.

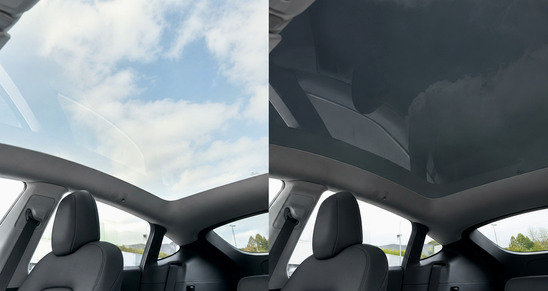

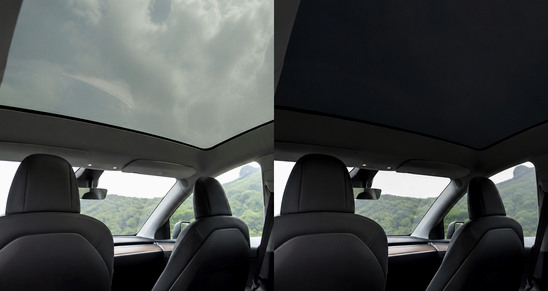

How to choose between P5, M7, and M9

A clear product ladder based on color, light transmission, control method, and market requirements. Distributors should confirm application under local regulations and customer usage habits.

European markets

Focus on P5 and M7. P5 suits bright, minimalist interiors and light-color privacy; M7 balances everyday transparency and deep-gray shading.

North American markets

Focus on M7 and M9, using Model Y family travel, long-distance driving, and camping scenarios in demonstrations.

Middle Eastern markets

Highlight M9's darker OFF state and higher TSER, while using OMTD to build premium personalization projects.

Key specifications

Viewing angle	170°
Operating voltage	36–60 V AC
ON→OFF response	<200 ms
OFF→ON response	<20 ms (M7/M9) · <30 ms (P5)
Power consumption	4.5 W/m²
Switching cycles	>1,000,000
Operating temperature	−30°C to 100°C
Product thickness	0.40 mm (dimming series)
Designed service life	>8 years
Warranty	3 years
Packaging	Individual vehicle kit
Fitment	Confirm by model, production year, region, and glass structure

Vehicle-specific preforming

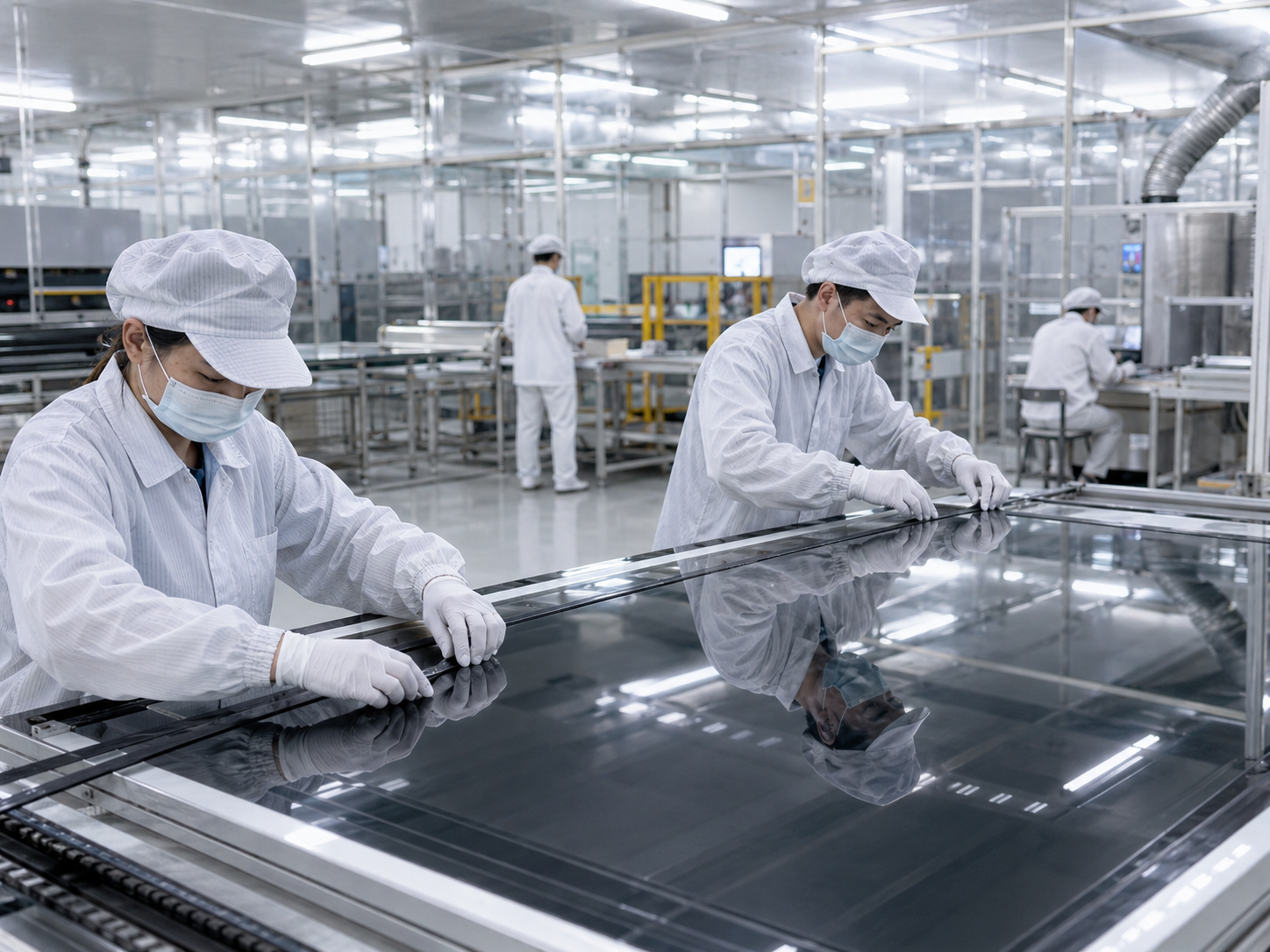

Complex dimensional processing and structural planning are completed in advance at the Shanghai production base. We do not send a generic sheet to the shop — we send a product already prepared for the specific vehicle.

Vehicle-specific patterns — reduce on-site measuring and trial-cutting
Main contour preprocessing — protect functional layers during install
Clear installation orientation — product numbers match vehicle info
Electrode & wiring planning — connection locations planned by structure
Individual kit packaging — simplifies inventory and distribution
More consistent installation — supports cross-region training and replication

Professional edge sealing

Smart dimming and photoelectric films contain functional materials, conductive layers, electrodes, and connection areas. Before shipment, the Shanghai production base professionally seals the edges and critical connection areas.

Protects functional layers from moisture and contaminants
Protects conductive structures around electrodes and connections
Reduces oxidation, delamination, lifting, and adhesive failure
Improves finished appearance — cleaner, more consistent edges
Simplifies on-site work — shops focus on lamination, wiring, and testing

Vehicle-specific preforming solves “how the size fits”; professional edge sealing solves “how the edges are protected.”

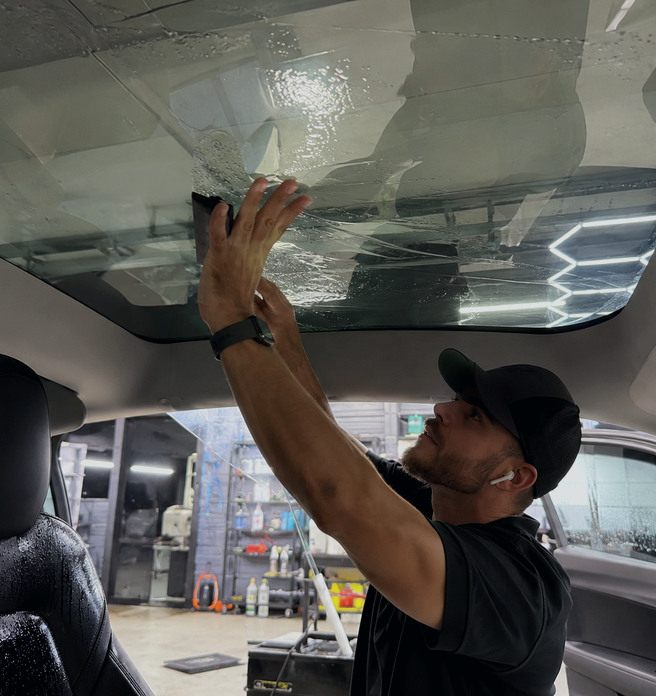

Professional edge sealing and installation

From non-standard fabrication to standardized installation

Helping overseas shops install, train staff, and replicate the business more easily.

Verify the vehicle

Model, production year, region, drive side, roof structure, and product number.

Inspect the kit

Film contour, edge sealing, electrodes, harness, controller, and auxiliary materials.

Clean the glass

Remove dust, oil, and hard particles from the interior roof glass.

Pre-position

Confirm direction, edge spacing, and wiring outlet position.

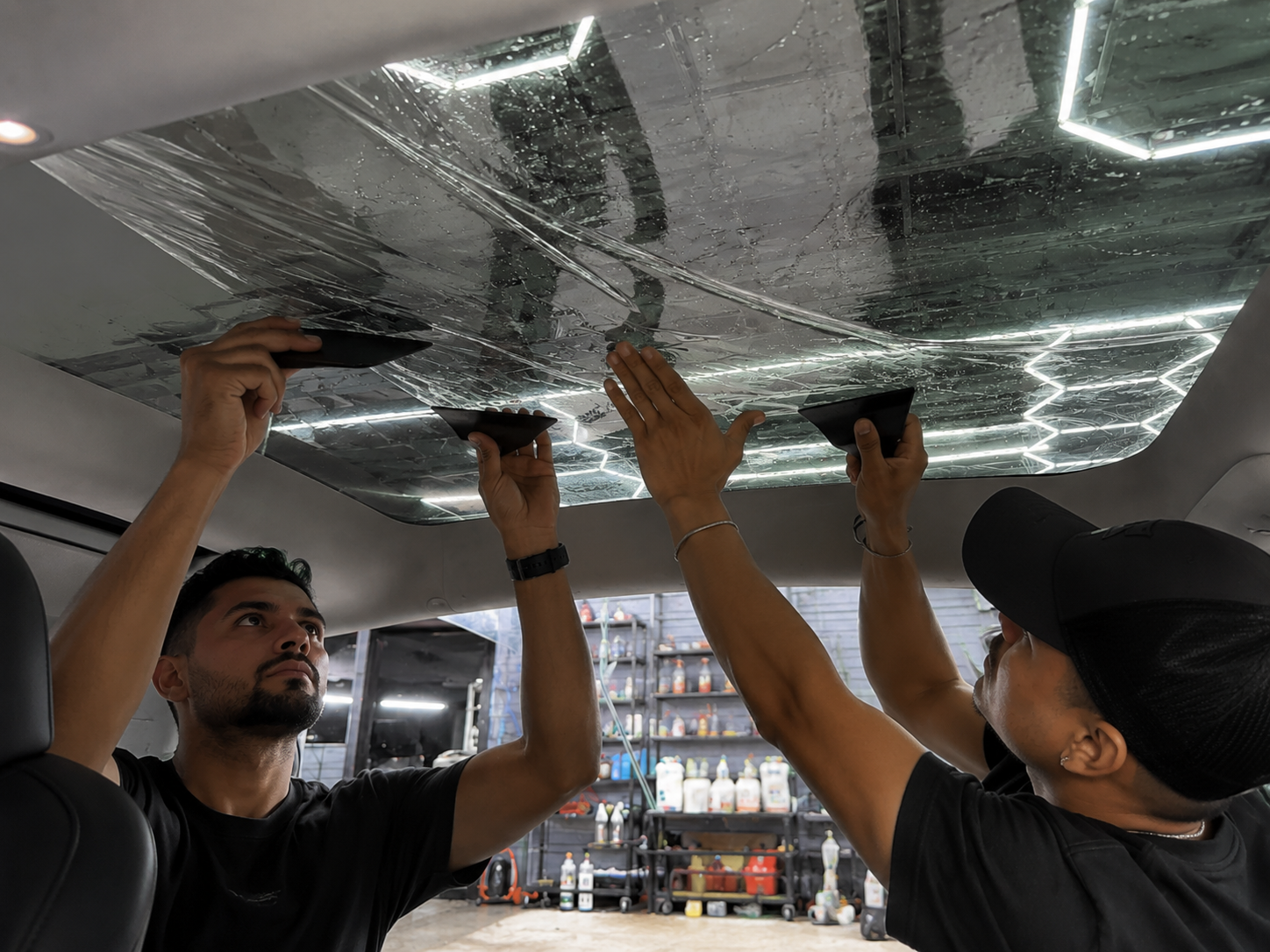

Complete lamination

Position and laminate without creasing or damaging the functional layer.

Install wiring

Connect and conceal electrodes, harness, controller, and switch.

Power-on testing

Check switching, stepless adjustment or graphics, edges, and electrical connections.

Customer handover

Explain operation, precautions, cleaning requirements, and warranty limitations.

Vehicle programs

Tesla Model 3 vehicle-specific solution

Preformed products matched to Model 3 production years and glass structures — P5 / M7 / M9 dimming or OMTD graphics while preserving a clean cabin language.

Tesla Model Y vehicle-specific solution

Larger roof area makes dimming changes and themed graphics more visible — family travel, long-distance, park & camp, and shop display scenarios.
