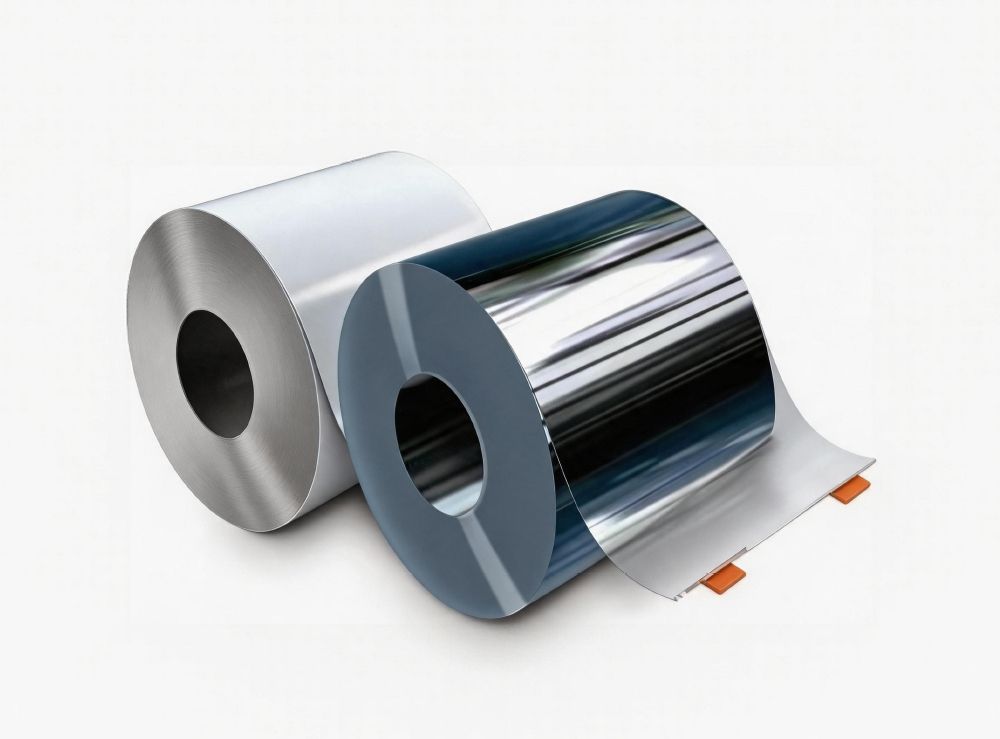

PDLC Smart Dimming Film
Polymer-dispersed liquid crystal film — transparent when powered on, frosted when off. Stepless dimming by voltage. Four series: CH-42 / CH-84 / CH-88 / CH-92.
Transparent or private in one second
Switchable smart film — instant privacy for offices, hotels, and vehicles.
Product introduction
PDLC technology & working principle
PDLC smart film adopts polymer dispersed liquid crystal technology. It is a functional optical film formed by coating liquid crystal polymer between two layers of flexible ITO conductive films and then laminating them together. The arrangement of liquid crystal molecules can be controlled by voltage to adjust the transparency of the film. When power is off, liquid crystal molecules are arranged disorderly, blocking parallel light and presenting an opaque frosted state. When powered on, liquid crystal molecules align orderly under the electric field, allowing light to pass through and turning the film transparent. The light transmittance can also be steplessly adjusted by changing the voltage level.

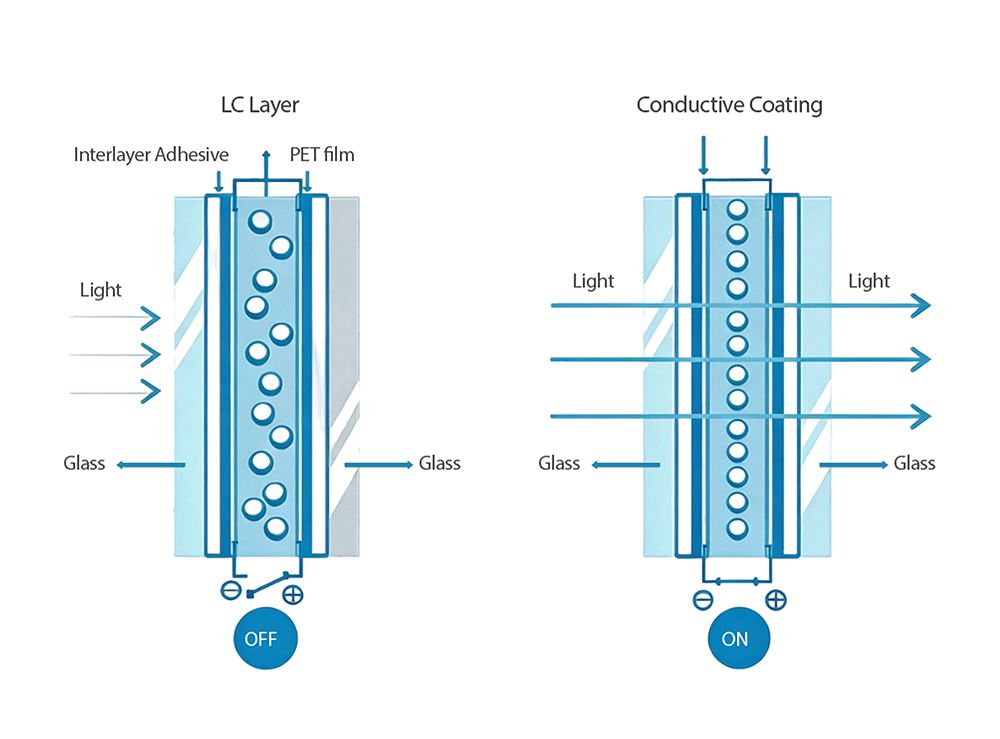

Working principle

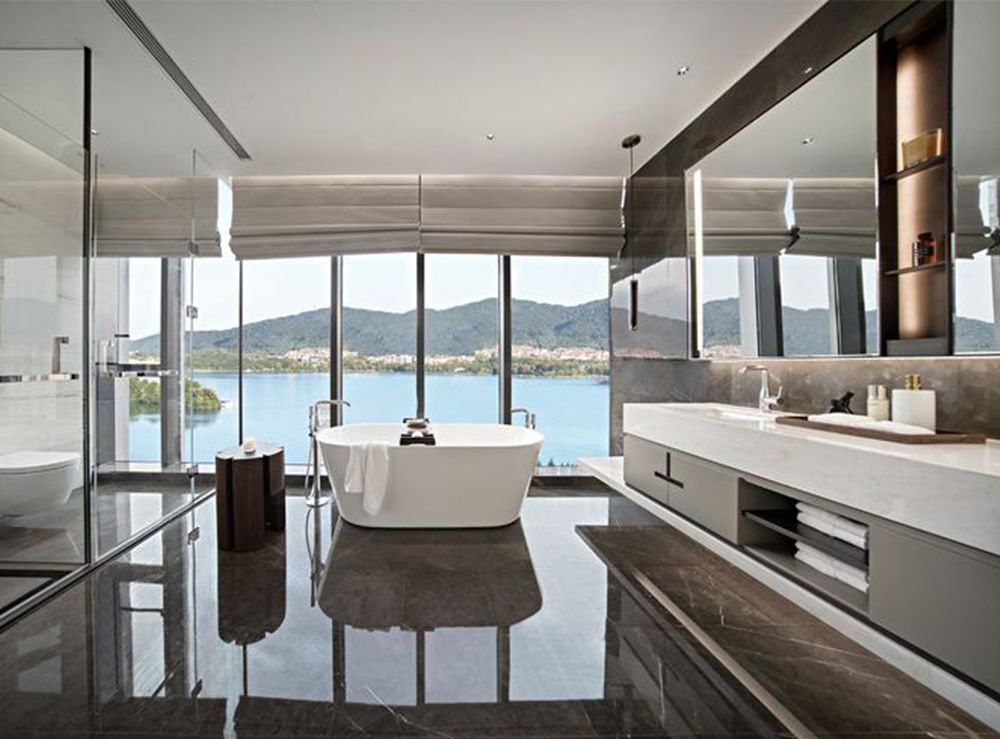

When power is off, liquid crystal molecules are arranged disorderly, blocking parallel light (frosted / opaque). When powered on, molecules align under the electric field and the film turns transparent. Transmittance can be steplessly adjusted by voltage.

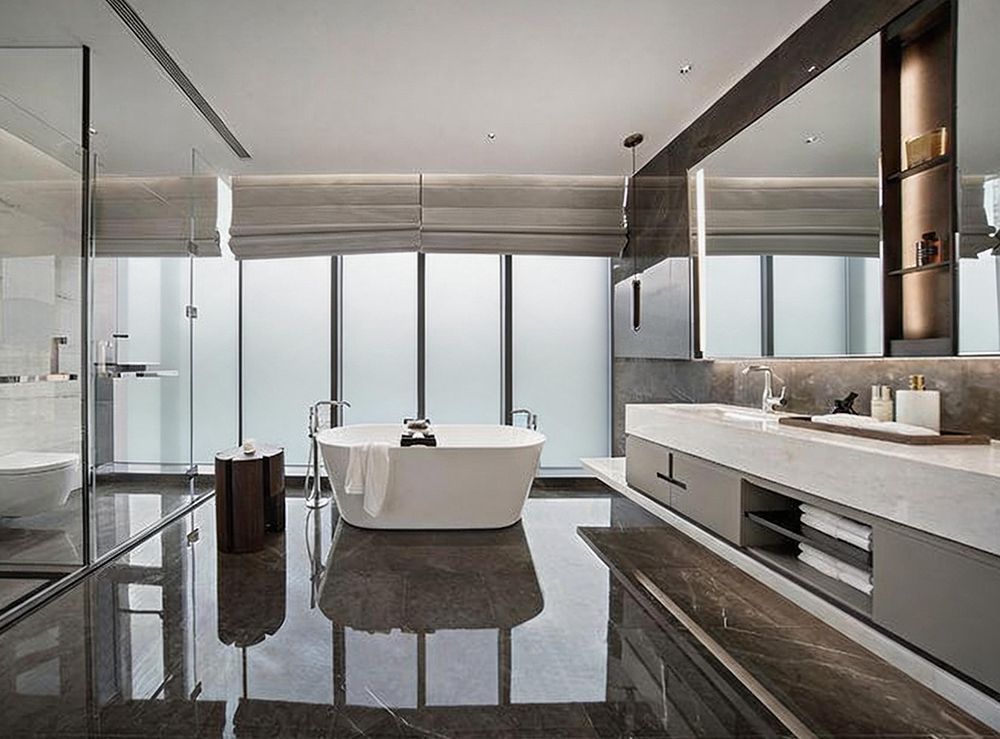

OFF

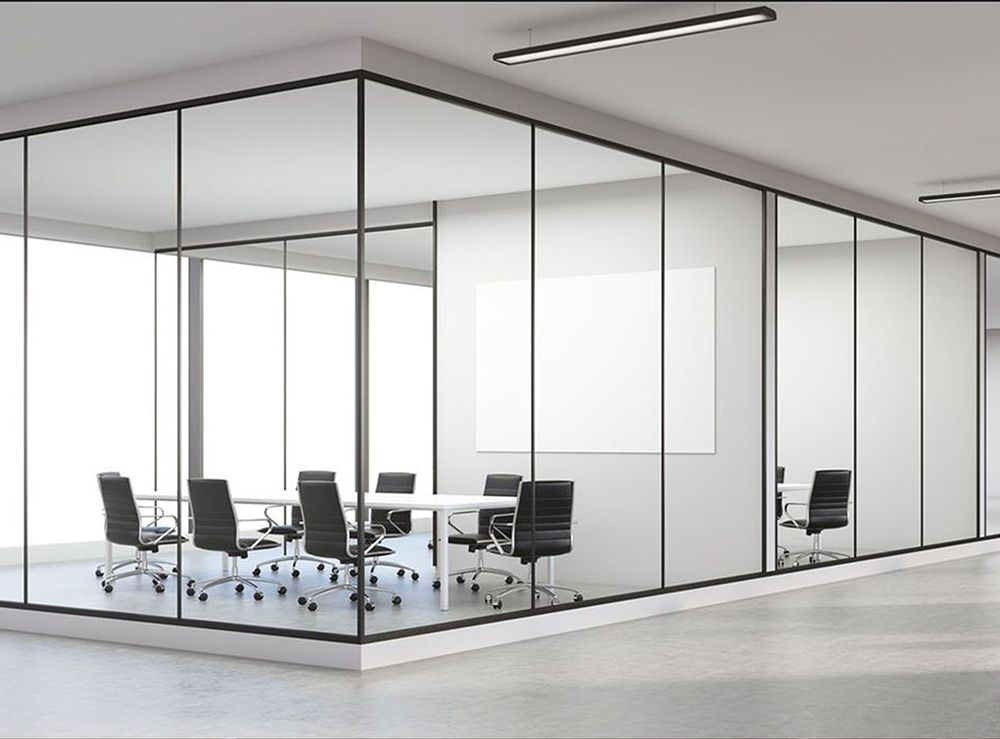

ON
Product models
Four dimming film series — CH-42 (grey 42%), CH-84 (High Transparency 83%), CH-88 (Ultra Transparency 88%), CH-92 (Ultra Transparency 92%). CH-88 and CH-92 are the flagship products. Source: Smart Dimming Film Data Sheet — 2025-04-28.

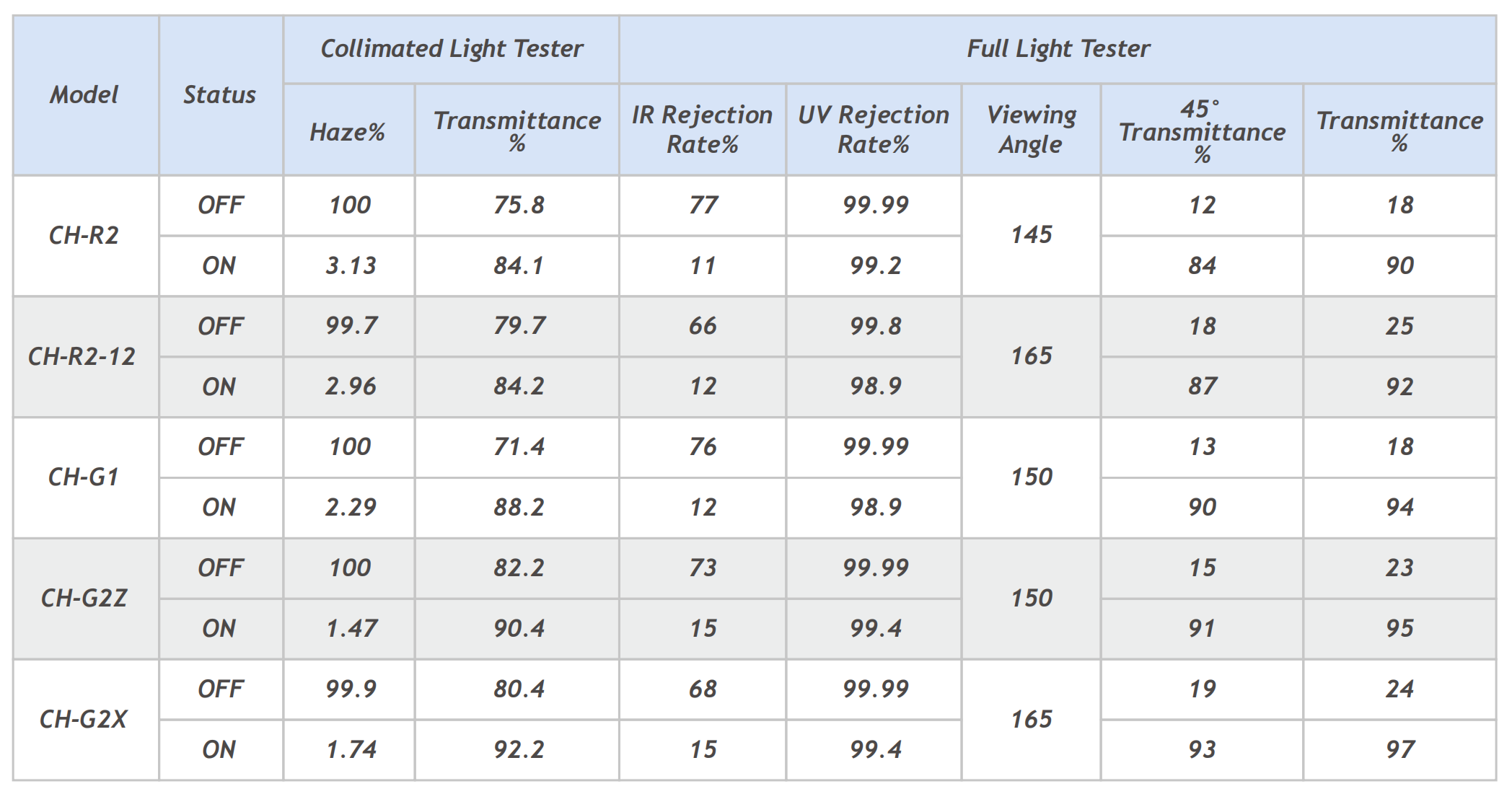

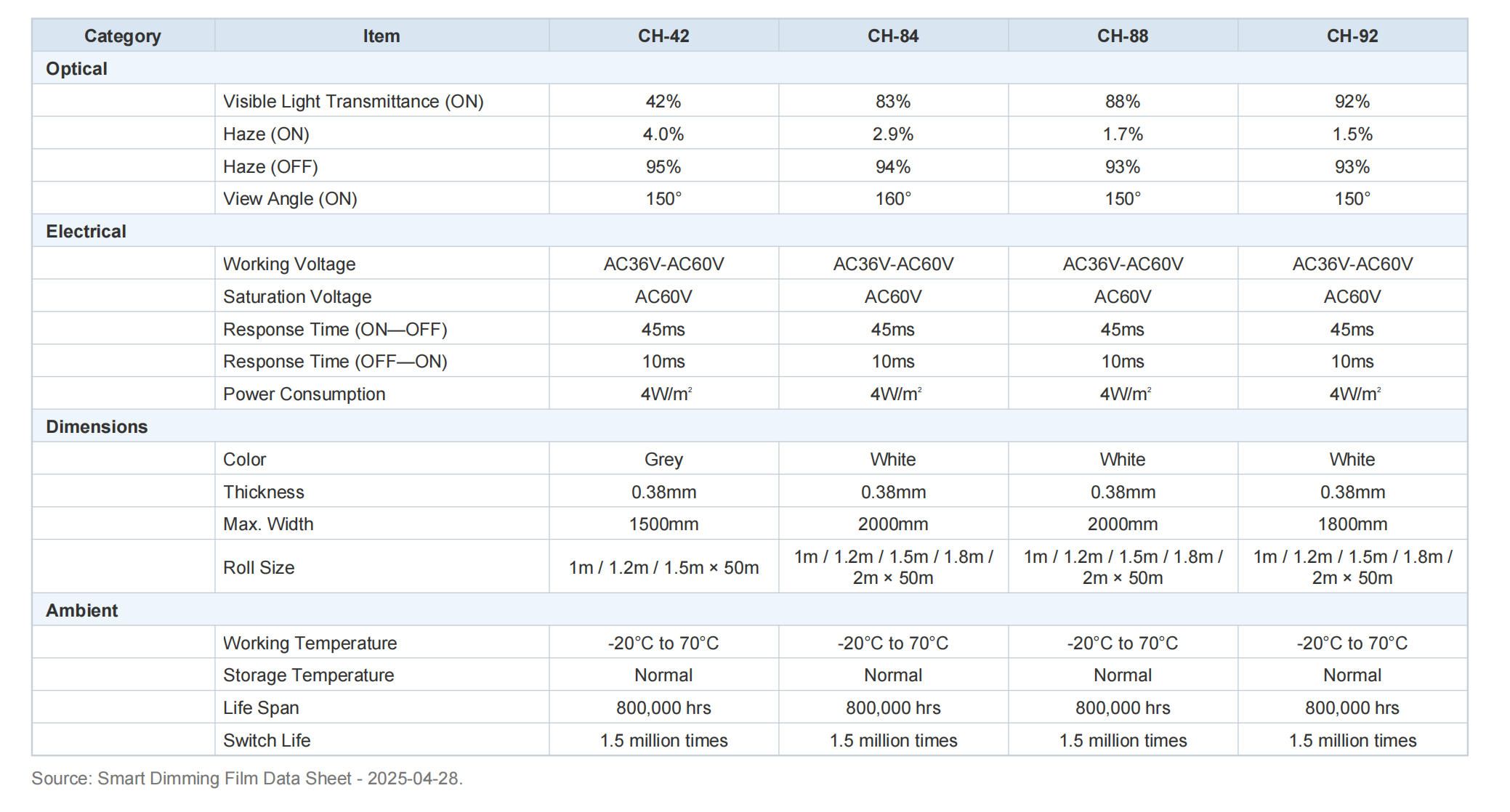

Optical performance comparison (ON / OFF) — reference datasheet values.
Product features
Protect privacy
When powered on, light transmittance reaches up to 90% with haze as low as ~4%. When powered off, haze exceeds 90%, protecting privacy to the fullest extent.
Rear projection imaging carrier
Project images onto the dimmable film for unobstructed viewing and advertising venue deployment.
Safety & explosion-proof
Composite adhesive with strong self-adhesion helps prevent glass splattering if broken, delivering explosion-proof performance.
Heat insulation & UV blocking
Blocks up to 99.9% UV rays and up to 80% infrared rays for solar control performance.
Energy-saving & eco-friendly
Transparent when powered on and frosted when off, with low daily power consumption. Also reduces renovation loss and pollution.
Effective sound insulation
Compared with ordinary glass, attaching dimmable film effectively enhances sound insulation and reduces noise interference.
Product parameters
| Product family | CH-42 (grey 42%), CH-84 (High Transparency 83%), CH-88 (Ultra Transparency 88%), CH-92 (Ultra Transparency 92%) |
| Flagship models | CH-88, CH-92 |
| Visible light transmittance (ON) | CH-42 42% · CH-84 83% · CH-88 88% · CH-92 92% |
| Haze (ON) | CH-42 4.0% · CH-84 2.9% · CH-88 1.7% · CH-92 1.5% |
| Haze (OFF) | CH-42 95% · CH-84 94% · CH-88 93% · CH-92 93% |
| View angle (ON) | CH-42 150° · CH-84 160° · CH-88 150° · CH-92 150° |
| Working voltage | AC 36V – AC 60V |
| Saturation voltage | AC 60V |
| Response time ON→OFF | 45 ms |
| Response time OFF→ON | 10 ms |
| Power consumption | 4 W/m² |
| Color | Grey (CH-42) · White (CH-84 / CH-88 / CH-92) |
| Thickness | 0.38 mm |
| Max. width | CH-42 1500 mm · CH-84 / CH-88 2000 mm · CH-92 1800 mm |
| Roll size | CH-42: 1m / 1.2m / 1.5m × 50m · CH-84 / CH-88 / CH-92: 1m / 1.2m / 1.5m / 1.8m / 2m × 50m |
| Working temperature | −20°C to 70°C |
| Storage temperature | Normal |
| Life span | 800,000 hrs |
| Switch life | 1.5 million times |
Test data
| Metric | Result | Method |
|---|---|---|
| Visible light transmittance (ON) | 42% / 83% / 88% / 92% | Data sheet 2025-04-28 |
| Haze (ON) | 4.0% / 2.9% / 1.7% / 1.5% | Data sheet 2025-04-28 |
| Haze (OFF) | 95% / 94% / 93% / 93% | Data sheet 2025-04-28 |
| View angle (ON) | 150° / 160° / 150° / 150° | Data sheet 2025-04-28 |
| Power consumption | 4 W/m² | Voltage power analyzer |
| Response time | ON→OFF 45 ms · OFF→ON 10 ms | LCD parameter tester |
Application areas

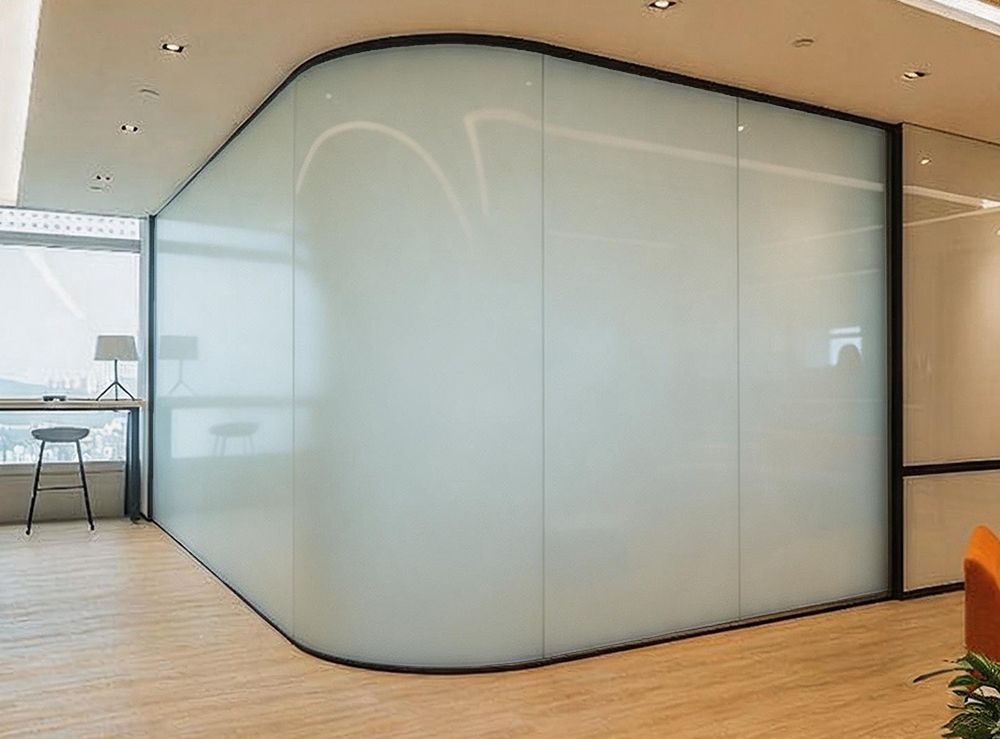

Office
Glass partitions and meeting rooms with one-touch privacy switching.
Hotel
Bathroom glazing, suite dividers, and premium privacy experiences.

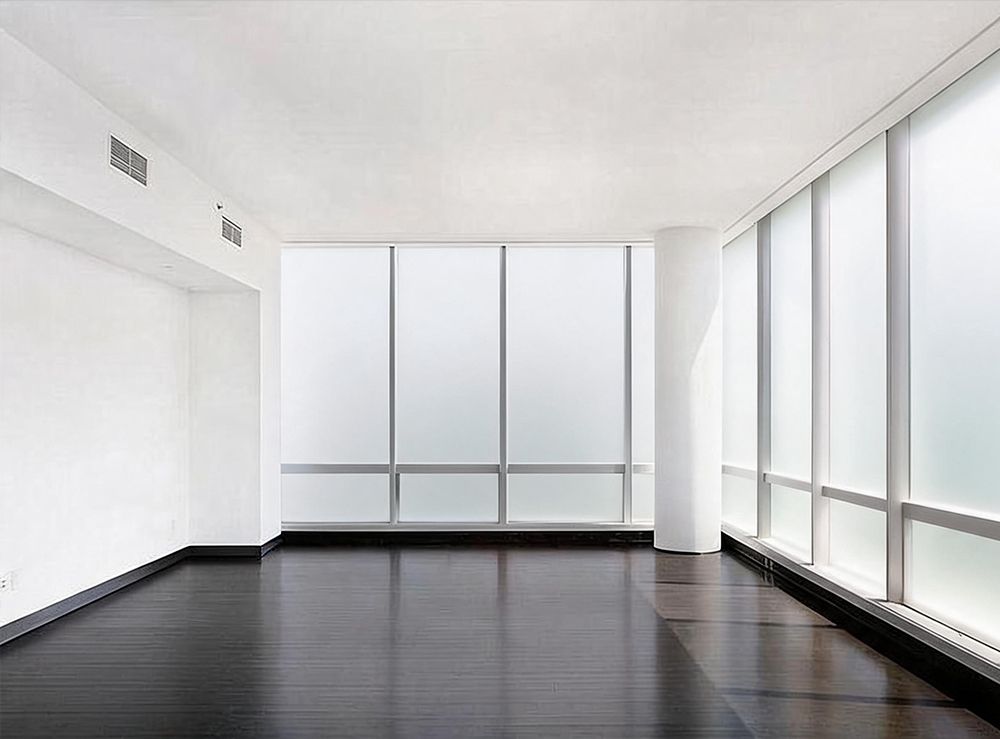

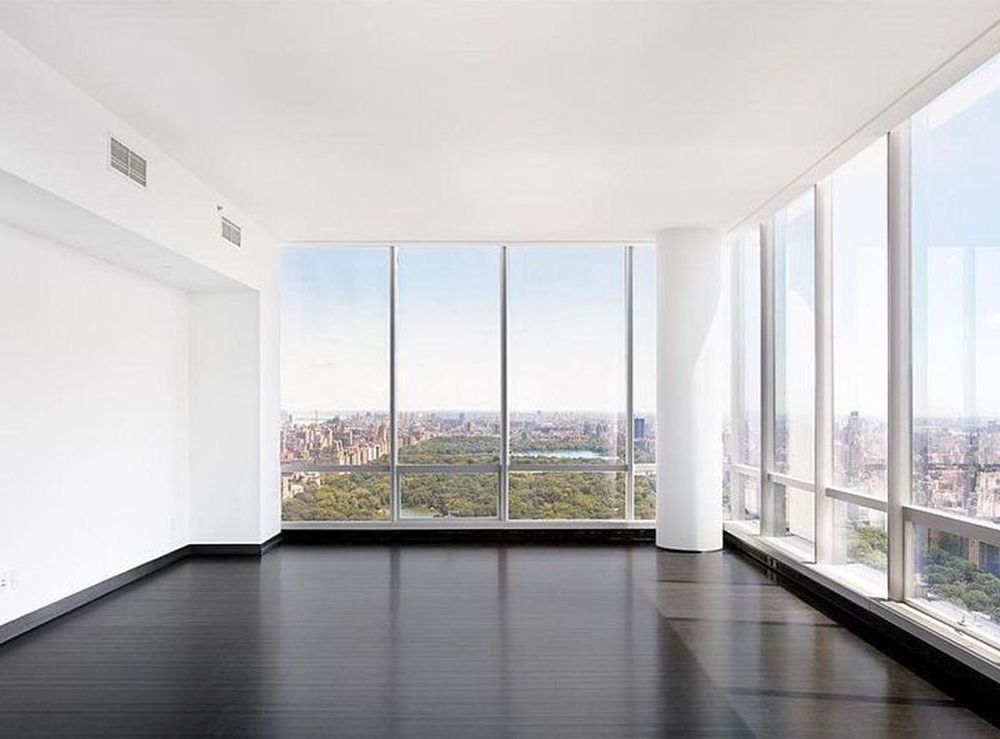

Residential
Balcony and bathroom privacy with daylight-friendly glazing.

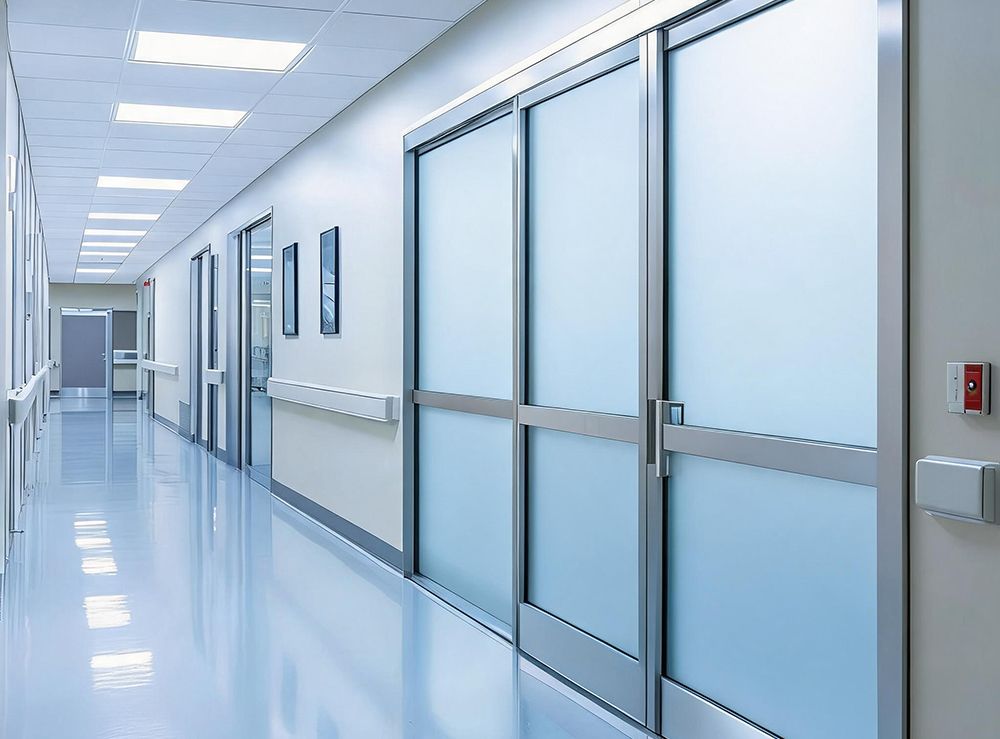

Healthcare
Clean and fast privacy control for consultation and treatment spaces.
Commercial buildings
Facade and curtain-wall projects requiring solar and safety performance.
Automotive glass
Passenger vehicle upgrades focused on comfort and privacy.
